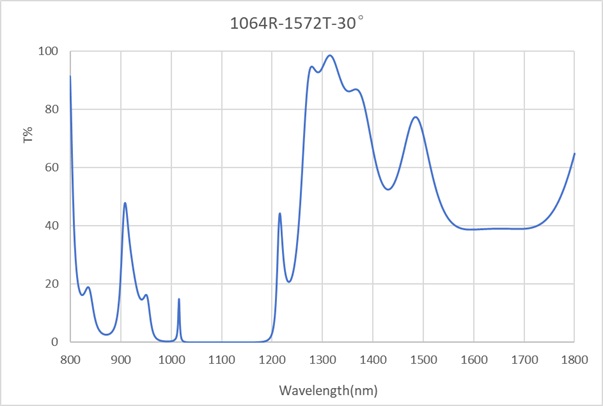

Edge-R1064nm-T1572nm-30°

AOI=30° R>99.8%@1064nm T=40%@1572nm

损伤阈值：>1000W/cm² 透射面型:RMS＜1/10λ@532nm

Edge-532R-1064T-45°

AOI=45° R>99.5%@532nm T>99%@1064nm

损伤阈值：>1000W/cm² 透射面型:RMS＜1/10λ@532nm

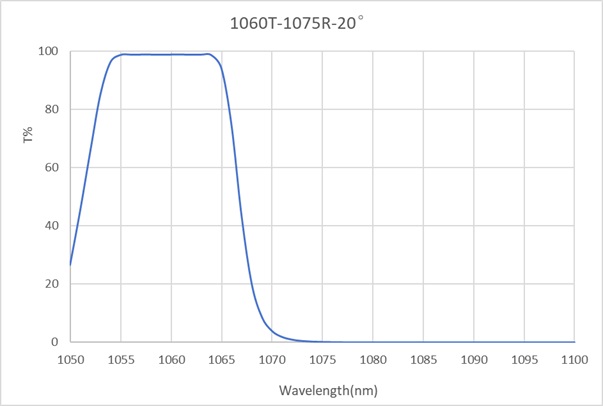

Edge-1060T1075R-20°

AOI=20° R>99.5%@1075nm T>98%@1060nm

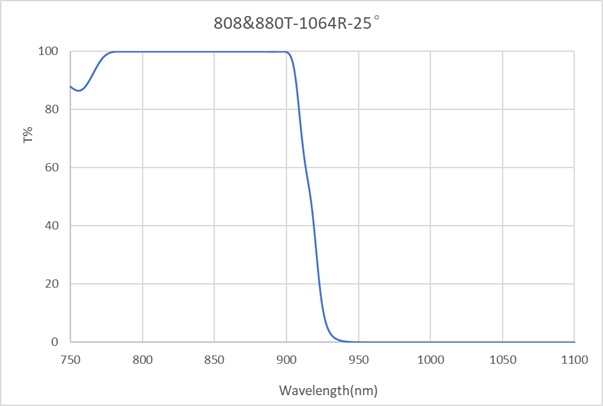

Edge-808&880T-1064R-25°

AOI=25° R>99.5%@1064nm T>99%@808nm&880nm

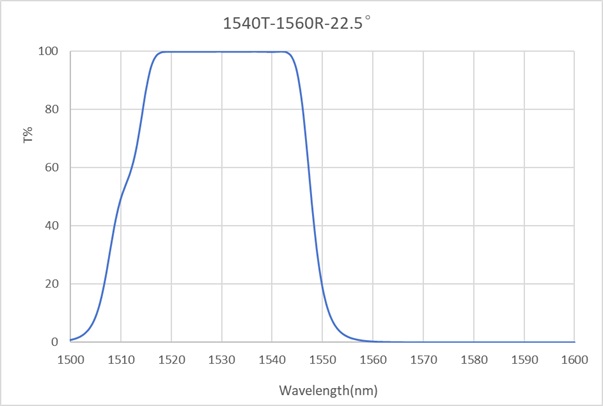

Edge-1540T-1560R-22.5°

AOI=22.5° T>98%@1540nm R>99.5%@1560nm

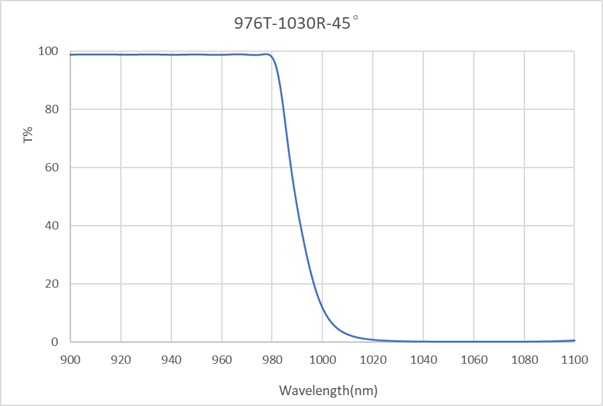

Edge-976T-1030R-45°

AOI=45° T>98%@976nm R>99%@1030nm
